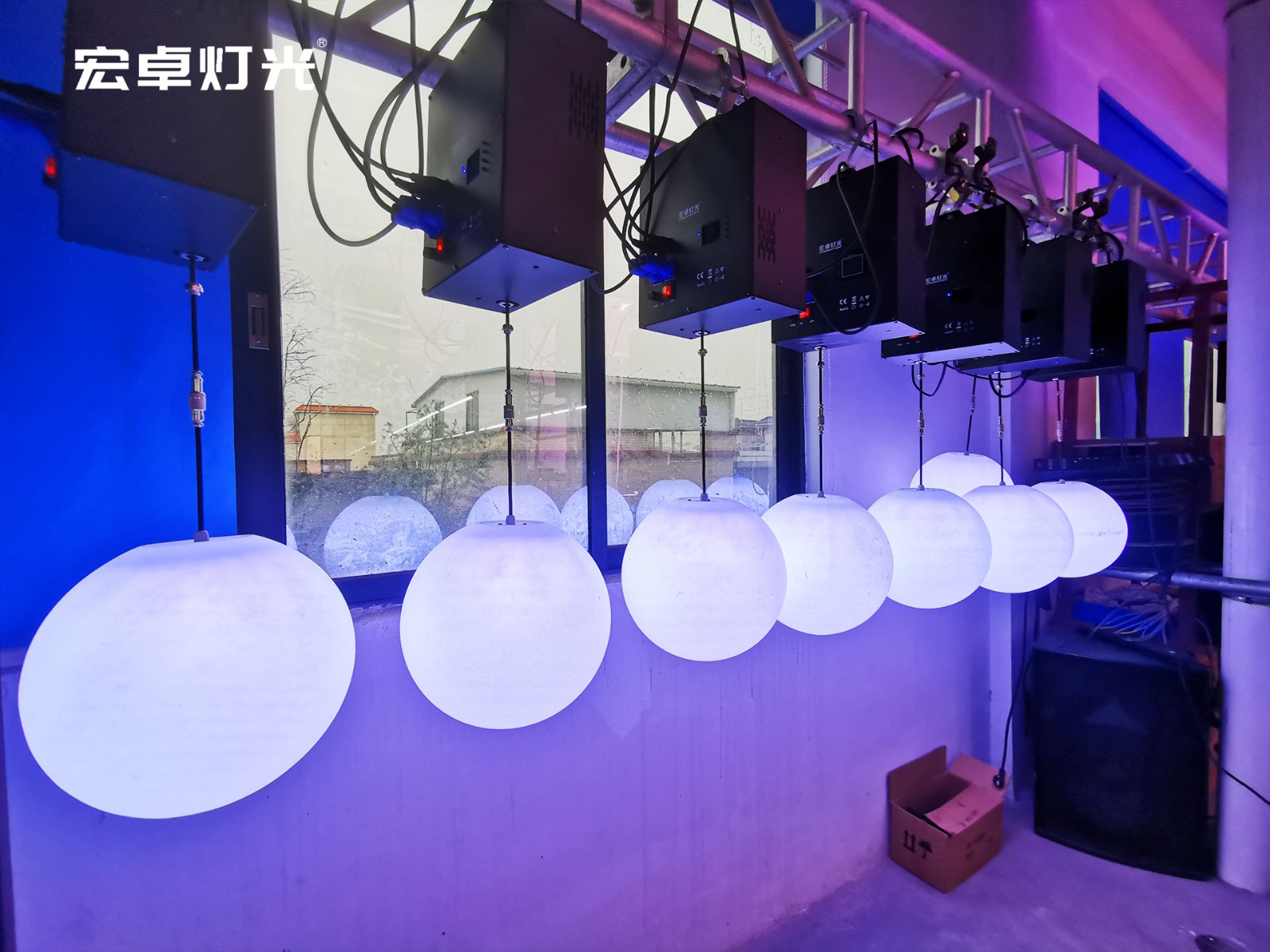

4 meters small lift

  • Product introduction:
Technical parameter Effect picture Effect video Download

Product model: HZ-MINI-SJJ-4

Input voltage: AC90V-240V/50-60HZ.

Pure elevator power: 30W

Lifting height: 0.5-4m

Bearing capacity: 0.5-5KG

Battery valve: High-power 24V pure copper battery valve, with strong strength and sufficient elasticity. During use, in case of sudden power failure, the electromagnetic valve will be closed immediately, and the turntable will be locked in time, effectively preventing the possibility of sudden falling of the lifting carrier and ensuring safety more effectively.

Lifting wire: custom-made extra-soft robot cable, wire skin silicone rubber material, soft and wear-resistant, built-in pure copper cable, high voltage and high current resistance, anti-interference, bearing up to 50KG.

Chassis: All-plastic engineering plastic shell with high temperature and fire resistance is adopted, with small volume and light weight.

Display mode: color LCD liquid crystal display, free switching between Chinese and English, inverted display,

Control mode: with RDM function, international standard DMX512, voice control, self-propelled and master-slave control, which can be controlled by computer software MADRIX.

Cold protection level: lifting machine IP20

Working environment: -20 degrees and 40 degrees

Net weight of elevator: 3.8KG

Elevator size: 222*173*132mm (L*W*H)





Carrier parameter

Input voltage: AC90V-240V/50-60HZ.

Power: 20W

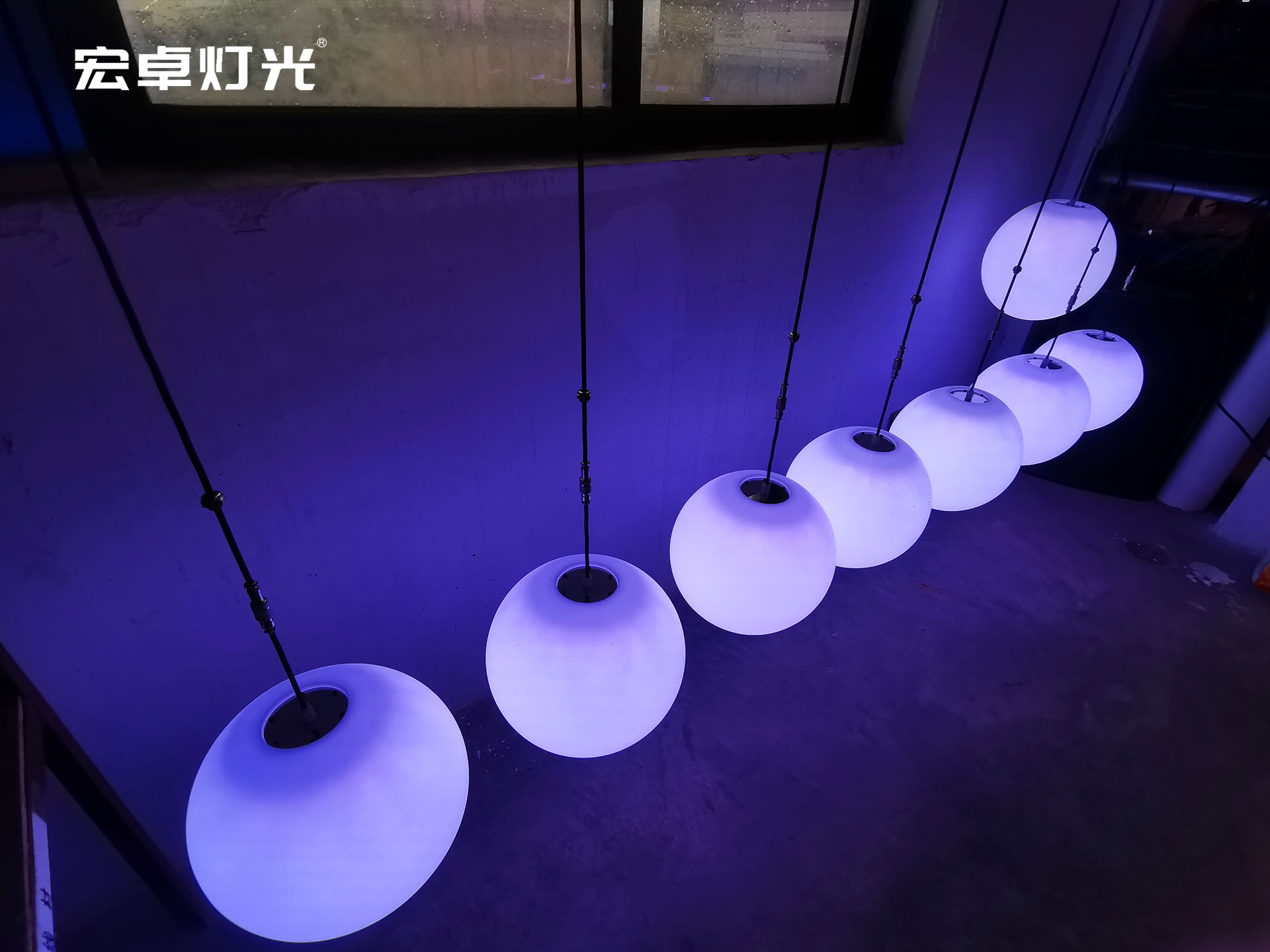

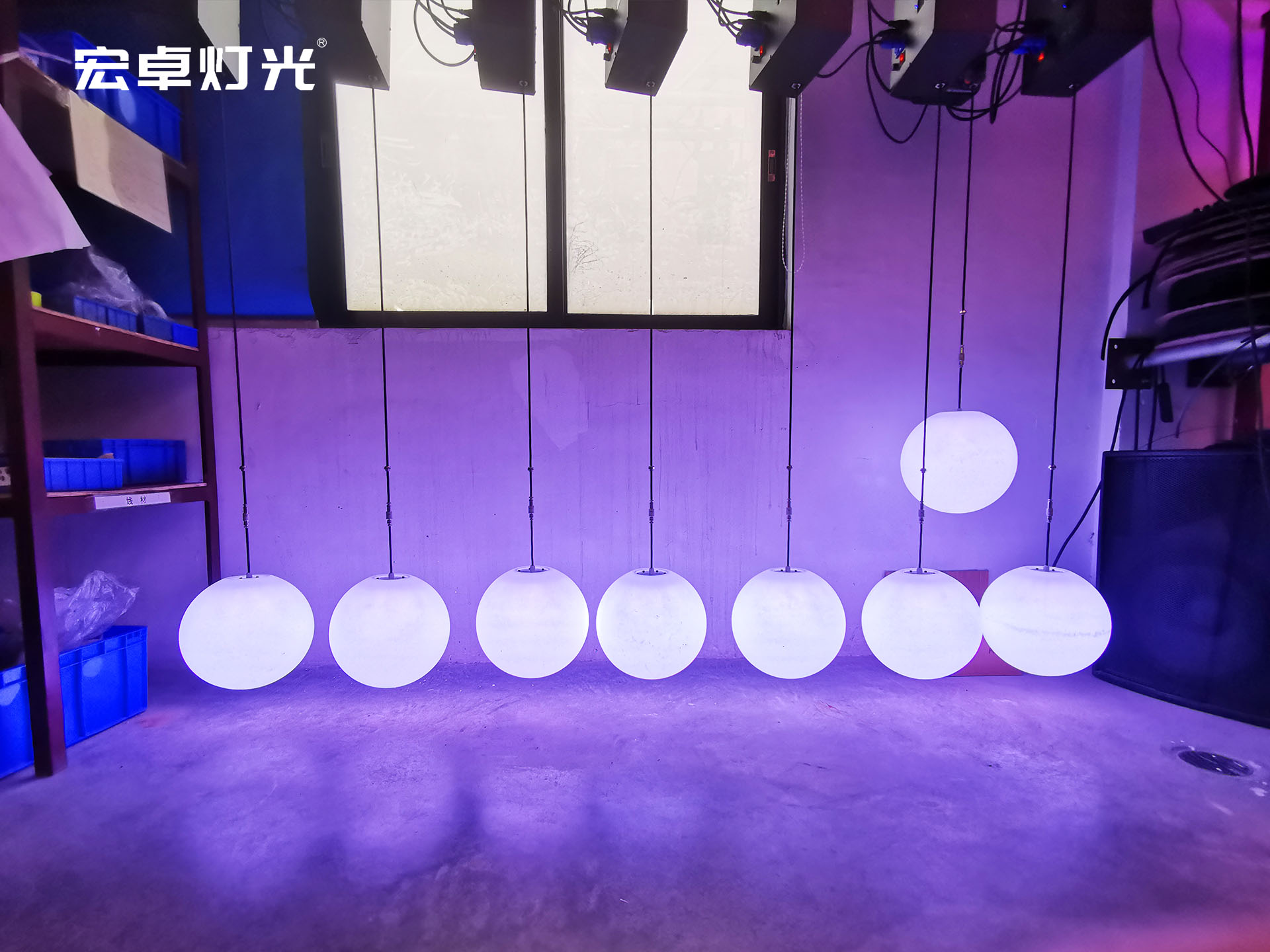

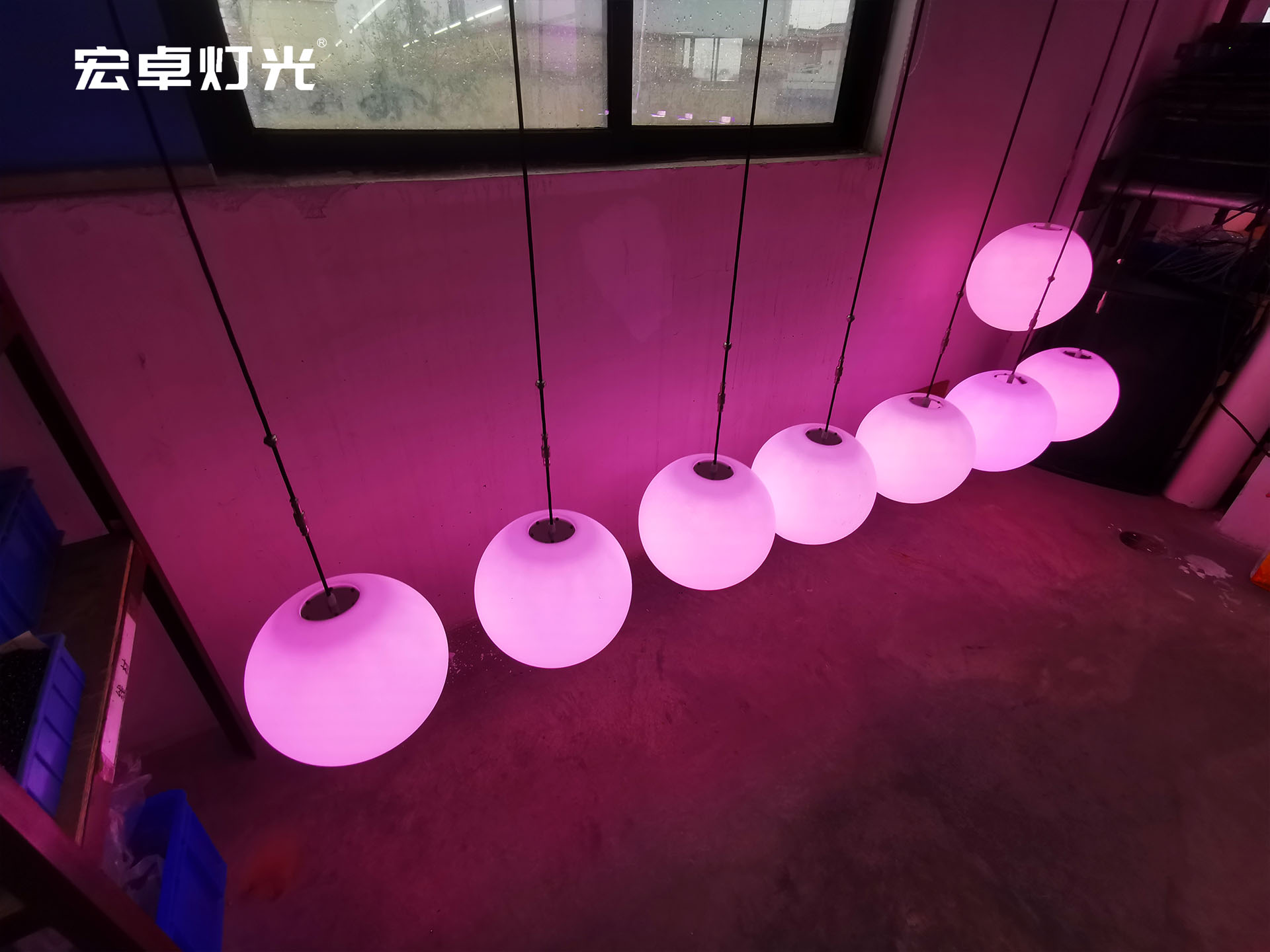

Lifting carrier (optional): 30CM ball (size can be customized), 30X30X30CM Rubik's cube, 30CM flowers.

Light source specification: LED 1W three-in-one lamp bead

Expected service life of lamp beads: 20,000 hours

Number of lamp beads: 18

Channel mode: 8 color temperature correction: 2500K-8000K linear adjustment

Color rendering index: > 90Ra

Color configuration: RGB (red/green/blue) linear color mixing, built-in excellent color macro effect, uniform color mixing.

Control mode: international standard DMX512, voice control, self-propelled, master-slave control, which can be controlled by computer software MADRIX.

Channel mode: 9

Shell material: high temperature and fire resistant engineering plastic injection molding.

Cold protection grade: IP65 can be made as required.

Working environment: -20 degrees and 40 degrees

Product net weight: 0.7KG, 1.2KG, 0.8KG,

Product size: 300X300X300MM(L*W*H)
