Product model: HZ-SJJ-9
Input voltage: AC90V-240V/50-60HZ.
Pure elevator power: 40W
Lifting height: 0.5-9 meters
Single machine bearing: 0.5-5KG
Battery valve: High-power 24V pure copper battery valve, with strong strength and sufficient elasticity. During use, in case of sudden power failure, the electromagnetic valve will be closed immediately, and the turntable will be locked in time, effectively preventing the possibility of sudden falling of the lifting carrier and ensuring safety more effectively.
Lifting cable: custom-made extra-soft robot cable is used, and the cable skin is made of silicone rubber, which is soft and wear-resistant. The built-in pure copper cable is resistant to high voltage and high current, anti-interference and bearing up to 50KG.
Chassis: made of alloy sheet metal material, which is resistant to falling and abrasion.
Display screen: color LCD LCD screen.
Control mode: with RDM function, international standard DMX512, voice control, self-propelled and master-slave control, which can be controlled by computer software MADRIX.
Cold protection level: lifting machine IP20
Working environment: -20 degrees and 40 degrees
Net weight of elevator: 7.3KG
Elevator size: 289*254*148mm (L*W*H)
Carrier parameter
Input voltage: AC90V-240V/50-60HZ.
Power: 20W

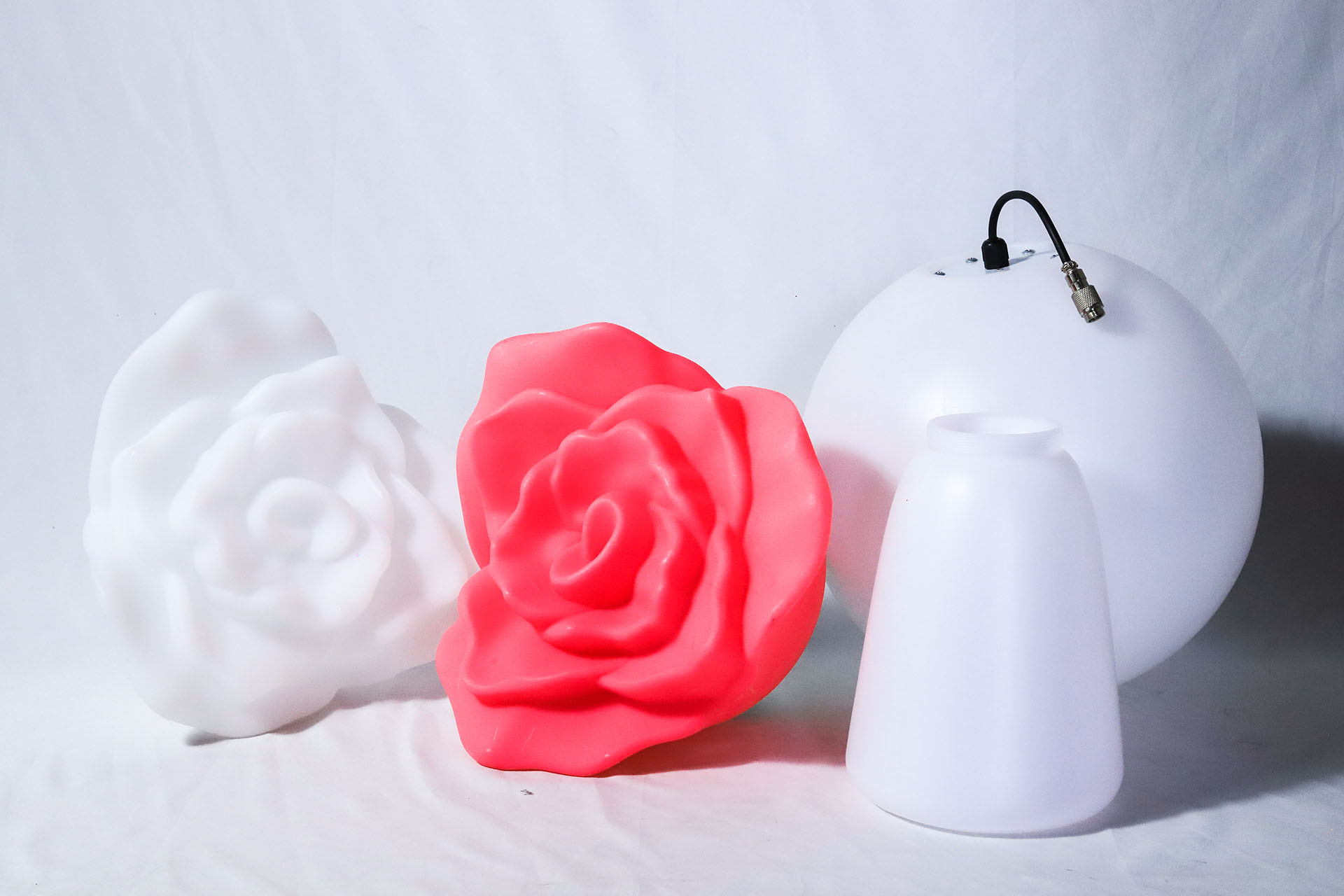

Lifting carrier (optional): 30CM ball (size can be customized), 30X30X30CM Rubik's cube, 30CM flowers.
Light source specification: LED 1W three-in-one lamp bead
Expected service life of lamp beads: 20,000 hours
Number of lamp beads: 18
Channel mode: 8 color temperature correction: 2500K-8000K linear adjustment
Color rendering index: > 90Ra
Color configuration: RGB (red/green/blue) linear color mixing, built-in excellent color macro effect, uniform color mixing.
Control mode: international standard DMX512, voice control, self-propelled, master-slave control, which can be controlled by computer software MADRIX.
Channel mode: 9
Shell material: high temperature and fire resistant engineering plastic injection molding.
Cold protection grade: IP65 can be made as required.
Working environment: -20 degrees and 40 degrees
Product net weight: 0.7KG, 1.2KG, 0.8KG,
Product size: 300X300X300MM(L*W*H)
